PZT5H Piezo Ceramic

PZT5H piezo ceramic with dimensions 12*2*0.5 mm, electrodes on both sides, MOQ 100 pieces, the type is customized, lead time is 2-3 weeks.

PZT5H piezo ceramic

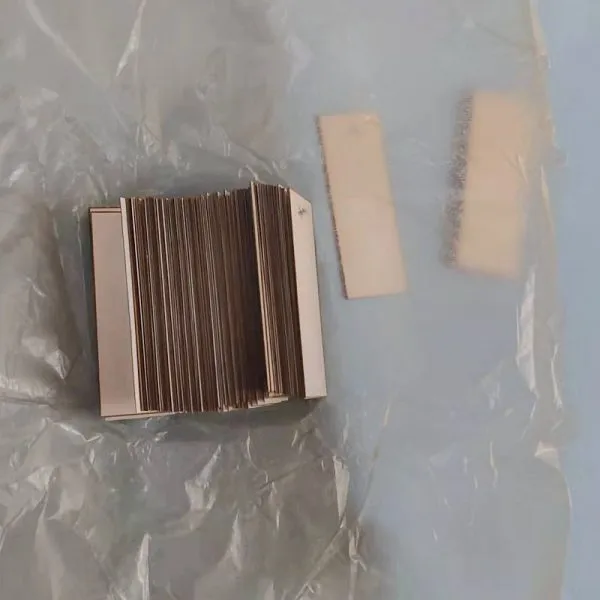

Rectangular PZT5H piezo ceramic with dimensions 12*2*0.5 mm.
MOQ: 100 pieces.
Minimum dimension tolerance: ±0.05 mm.
Coating material: silver.
Electrodes marked for polarity.

material datasheet:

PZT5H Piezo Ceramic
PZT5H Piezo Ceramic

Effects of electric fields on the bending behavior of PZT-5H piezoelectric laminates

This Paper investigates the bending behavior of piezoelectric laminates under combined mechanical and electrical loading.

The laminate has a PZT – 5H ceramic core sandwiched by graphite/epoxy plates.

Three-point bending tests and in-situ acoustic emission measurements were conducted on the PZT-5H laminates preloaded by an applied electric field.

The results show that the PZT-5H core fractures first and then delamination occurs along with the tensile stressed interface between the PZT ceramic and the graphite/epoxy layer.

Finite element analysis was performed to analyze stresses in the sandwich structure under combined mechanical and electrical loading.

Consequently, the bending strength of the PZT core was evaluated from the experiment data. The electric field, either positive or negative, reduces the fracture strength of the PZT core.
