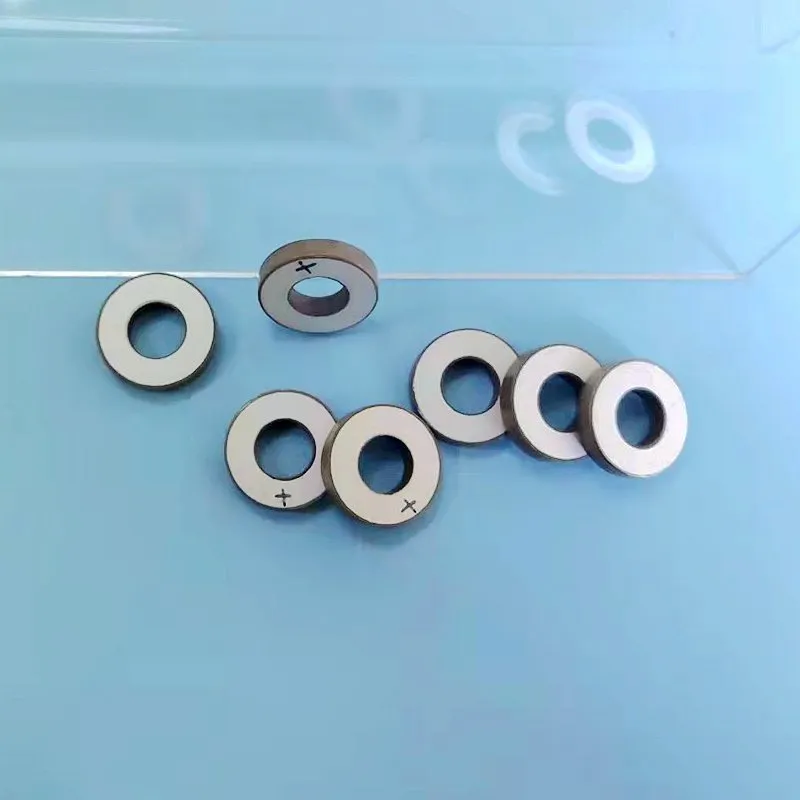

Pzt 8 piezo ceramic data test report:
| OD | ID | Thickness | C(pF) | Loss | D33 | Fr (kHz) |
| 14.96 | 7.05 | 3.00 | 455 | 0.3 | 255 | 101.5 |
| 14.97 | 7.10 | 3.00 | 459 | 0.3 | 260 | 102.1 |
| 14.97 | 7.05 | 2.98 | 466 | 0.3 | 267 | 102.4 |
| 14.95 | 7.06 | 3.00 | 465 | 0.3 | 260 | 102.2 |
| 14.98 | 7.15 | 3.00 | 460 | 0.3 | 255 | 102.2 |
| 14.97 | 7.12 | 3.00 | 466 | 0.3 | 262 | 102.0 |
| 14.97 | 7.08 | 3.01 | 455 | 0.3 | 262 | 102.0 |
| 14.99 | 7.15 | 2.99 | 459 | 0.3 | 265 | 102.0 |
| 14.96 | 7.18 | 2.99 | 463 | 0.3 | 255 | 102.1 |
| 14.97 | 7.20 | 2.98 | 465 | 0.3 | 260 | 102.1 |
| 14.98 | 7.10 | 3.00 | 460 | 0.3 | 269 | 101.8 |
| 14.96 | 7.20 | 3.00 | 455 | 0.3 | 260 | 101.6 |
| 14.97 | 7.19 | 2.99 | 460 | 0.3 | 256 | 102.5 |
| 14.96 | 7.12 | 2.99 | 455 | 0.3 | 255 | 102.2 |
| 14.98 | 7.20 | 2.99 | 455 | 0.3 | 266 | 102.4 |
| 14.98 | 7.10 | 3.01 | 470 | 0.3 | 266 | 101.9 |
| 14.98 | 7.10 | 3.01 | 448 | 0.3 | 266 | 101.5 |
| 14.96 | 7.13 | 3.02 | 461 | 0.3 | 268 | 102.4 |
| 14.97 | 7.22 | 2.99 | 450 | 0.3 | 265 | 102.3 |
| 14.96 | 7.12 | 3.00 | 445 | 0.3 | 260 | 102.0 |
PZT 8 piezo-ceramicPZT 8 piezo ceramic applications:
Dentists frequently employ ultrasonic teeth cleaning in their practice. When compared to typical teeth cleaning procedures, the principle of ultrasound is applied to achieve a more effective tooth cleaning result, which saves time and effort. The ultrasonic transducer for teeth cleaning may fully eliminate scars and stones from the teeth, keeping them clean and healthy.
Ultrasonic tooth cleaning, also known as supragingival cleaning (often referred to as scaling), is the use of cleaning instruments to remove plaque and color from the gums and polish the tooth surface to prevent plaque and tartar from re-forming. However, because supragingival calculus is frequently linked to shallow subgingival calculus, a professional dental cleaning should also remove calculus from the gingival sulcus, which is located around 3mm below the gingival edge. You’ll have to wait till later to do the deeper subgingival calculus. After that, scrape.
Ultrasonic tooth cleaning uses high-frequency and high-energy vibrations generated by ultrasound to break up calculus and dental stains on the surface of the tooth through the working head of a smooth ultrasonic scaler, and then wash the gravel and plaque through the water mist generated by the scaler Next, you will get clean, smooth, fresh and white teeth. It is an efficient, hygienic, convenient, and comfortable tooth cleaning method, which has been widely used in clinical practice.
Hot Tags: PZT 8 piezo-ceramic, For Sale, Price, Customized, Manufacturer
