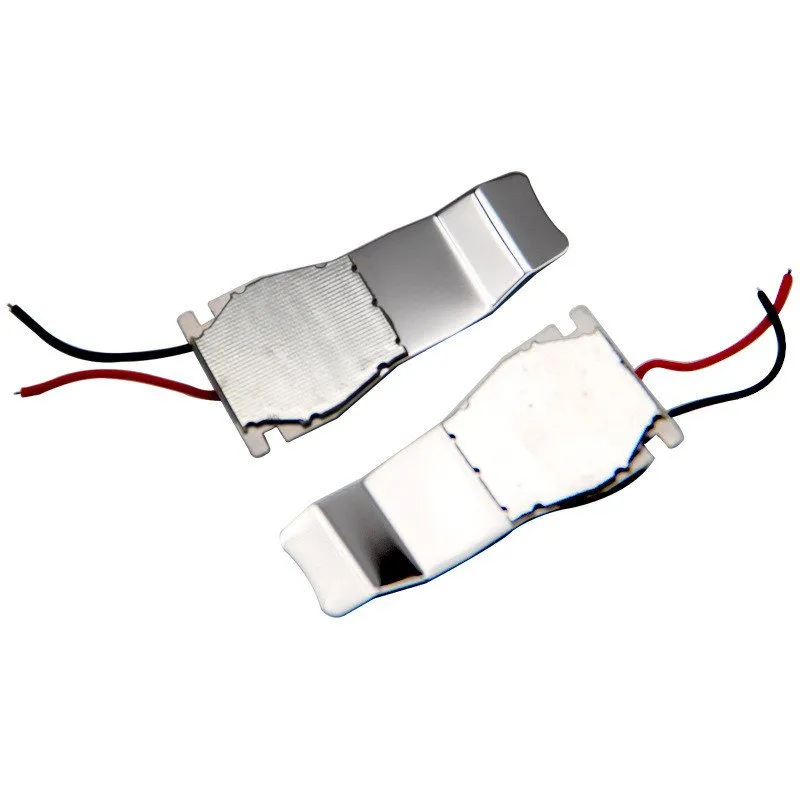

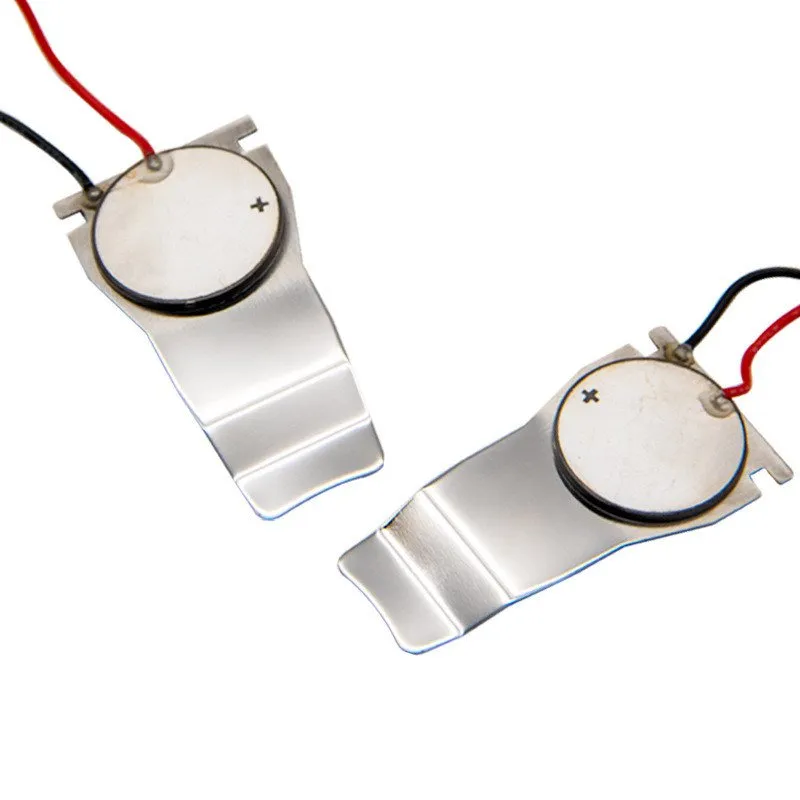

Ultrasonic skin scrubber transducer for sale, The ultrasonic skin scrubber transducer can be customized according to your need.
Available one: frequency 24 kHz, capacitance 5000 pF, Impedance ≤300Ω, Dimension: 78x35x0.5mm.
If you are interested in its piezoelectric ceramic transducer, click here.
Ultrasonic Skin Scrubber Background Technique:
Ultrasonic Skin Spatula has the ability to remove blemishes and wrinkles and brighten the skin. The high-frequency vibrations of the ultrasonic waves act on the face, vibrating the skin cells, softening the tissue, completely removing the aging of the skin, blocking pores, grease, cosmetic residues, and releasing excess oil.
Ultrasonic high-frequency energy conversion improves local blood and lymph circulation, enhances product surface activity, breaks down pigmented areas of pigmentation, thins dark spots, and improves tissue metabolism and regeneration capacity.
It also makes the pores permeable and makes the skin shiny and elastic. Most of the existing ultrasonic skin scoop knife sleeves are pressed directly and connected to the ultrasonic scoop body, which makes the connection less stable. If you carry the knife cover in a bag, it will easily come off the ultrasonic excavator body and not only get dirty easily.
The blade and things in the bag are easily damaged, so improvement is needed.
Ultrasonic Skin Scrubber Technical realization element:
The purpose of the utility model is to solve the problem of the irrational design of ultrasonic skin scoop in the prior art and propose an ultrasonic scoop.
To achieve the above objectives, the current utility model uses the following technical solutions.
Ultrasonic shovel knife consisting of an ultrasonic shovel knife body, a blade is permanently attached to the output end of the ultrasonic shovel knife body.
The ultrasonic excavator knife body is attached to the control knob and the ultrasonic paddle body, the seal cover is detachably attached to one end, and the connector is placed between the seal cover and the ultrasonic paddle knife body.
Ultrasonic scrubber solution
Preferably, the connector comprises an annular connector plate fixedly attached to one end of the seal cover, the annular connector plate being inserted into the body of the ultrasonic skin scoop.
Two limiting blocks are symmetrically and movably attached to the annular connecting plate, two limiting slots that work with the limiting blocks are opened symmetrically to the inner sidewall of the annular connecting groove, and the limiting grooves are all outside the ultrasonic spatula. Extend to.
Preferably, the annular connection plate is symmetrically provided with two mounting grooves that cooperate with the dividing block, and a plurality of movable rods can be movably inserted on the inner wall of the two mounting grooves.
One end of the slot is secured to the mounting limiting block, each movable rod has a spring, and both ends of the spring are secured to the outer sidewall of the limiting block and the inner sidewall of the mounting groove. , Each. Preferably, the end of the boundary block away from the annular connection plate is an inclined surface.
Ultrasonic skin spatula
Preferably, a plurality of balls are installed on the inner sidewalls of the two limiting grooves at equal intervals, and the balls and the limiting blocks are in contact with each other. Preferably, the inner sidewalls of the two demarcation grooves are permanently fitted with a rubber sealing collar that interacts with the demarcation block.
1. The utility model has the following advantageous effects as compared with the prior art: With the help of a connecting device, the closing cover is firmly connected to the outside of the excavator. The connection stability is good.
The seal cover does not easily fall off the outside of the blade to prevent the blade from falling and becoming contaminated while the seal cover is being carried. The design is wise and practical. Effect.
2. The seal cover can be easily and quickly attached and detached from the outside of the blade without using screws, and the effect of use is also good.
