Ultrasonic Cleaner Driver Board

AC 220V 60W-100W Ultrasonic Cleaner Power Driver Board With 2Pcs 50W 40KHZ Ultrasonic Transducers

Ultrasonic Cleaner Power Driver Board Parameter:

Powerboard: 220V 60-100W

Ultrasonic transducer: 50W 40KHZ

Applies to: Ultrasonic cleaning machine with low power, home cleaning machine, machine-made of the ultrasonic generator.

Ownership:

The ultrasonic generator is able to monitor the system frequency power of the ultrasonic power

According to different needs of users, setting various parameters in real-time: Power, amplitude, and run time

Power tube: imported power tube

PCB: two sides two ounces

Strong performance

Large cooler, fast cooling

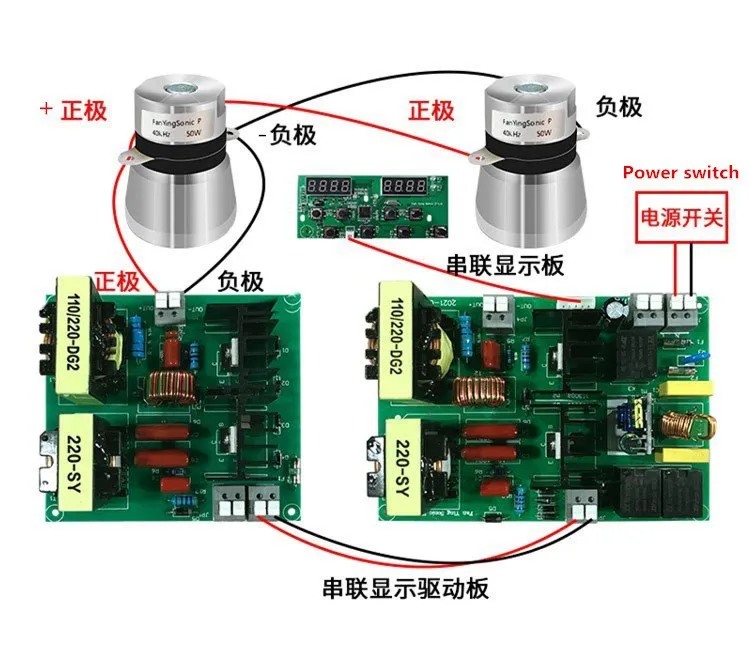

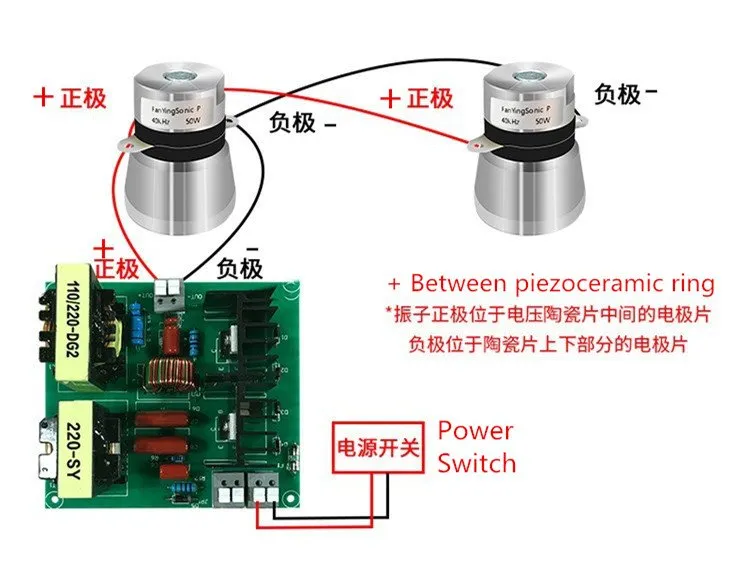

Circuit board and vibrating head (ceramic inverter) Wiring instructions:

1. The board cannot be loaded without power;

2. No cleaning fluid can be live.

3. Vibration first two tongues, two ceramic middle tabs positive, upper and lower metal post negative, irreversible;

Ultrasonic Transducer

4. Transducer film made of ceramic sheet covered with a silver layer for the negative side,

the other side of the large two silver layers is positive,

the smaller negative when the welding supply line on the side has to be welded,

has two silver layers, the other side of the vibrating surface can stick in the washing bath;

The silver layer of the ceramic chip is not high temperature,

the power cord as the temperature of the welding iron should not exceed 280 degrees,

preferably heated iron, the temperature of the iron is set at 250 degrees.

Piezoelectric ceramic ring for ultrasonic transducer click here;

5. The vibrating head larger side (with screw holes) of the vibrating surface can be glued to clean the pelvic floor, the pots should be well ground;

6. Hollow vibrating cavity or ceramic adhesive transducer hollow impact rod washbasin floor cleaning;

7. Two vibrating heads and connected to the terminals of the printed circuit board, a board with a maximum of two vibrating heads, but also with support for the use of the converter head;

8. Positive and negative, individual positive and negative output in combination with the oscillator can not be bad, we have questions, temporary advice to ensure safety;

9. To ensure safety, be sure to wash the pots and secure the ground and the leakage protection switch.

The package includes:

1 x power driver

2x converter

Contact us for buying now!

Another ultrasonic cleaning transducer power driver board
