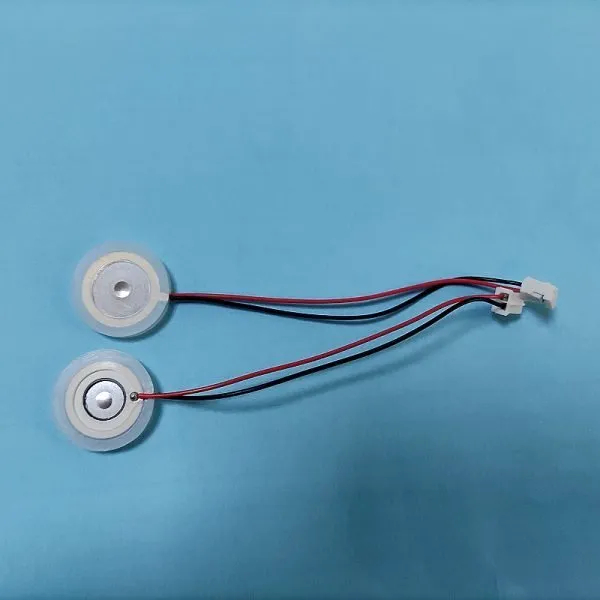

Ultrasonic Mist Transducer

Ultrasonic mist transducer parameter:

Part No.: PZT-W16-112K
Resonant Frequency (fr) :Fr=112 KHz±3KHz
Ro=max. 80Ὥ
(Cp) Cp=3000pF±15%
TEST PROCEDURE
TEST ATMOSPHERE 23±3℃ 40~70%RH.
Fr AND Ro: The HP-2818 Impedance Analyzer.
INPUT FOR TRANSDUCER, MAXIMUM INPUT:Voltage: 80 VP-p
Input Voltage: DC3-12V
POWER Max Input Power 2W.
( Normal use 1~1.5w) DC3-12V

What is ultrasonic humidifier working?

FAQ from one of the customers:

Ultrasonic Mist Transducer Applications:

I am the development manager for a UK company and work with Ms. Kate who recently purchased some atomizer transducers and driver boards from you.
We have been making some tests on the samples you sent and have found one that suits our requirements. PZT-W16-112K.
Below is a description of the application and below are some questions around optimizing the disc for our application.

Description

We are developing a steam simulator for our model locomotives. So we plan to use one of your transducers to emit water vapor through the steam locomotive chimney, The size and input voltage of the PZT-W16-112K suits the size of the model locomotive.

Questions

We would like to optimize the number and size of the holes on the PZT-W16-112K. The aim of the would-be is to produce a denser mist that simulates fog/smoke rather than steam. Is this possible and would we be able to develop and purchase some samples? We would appreciate your advice on this.
Also, can you advise if the transducers suffer damage if the water runs dry?

Answers

We can make more mesh holes on the ultrasonic mist transducer, max. 1200 micro-holes, it may make mist denser.

Yes, samples can be provided.

There is a device on the PCB board for avoiding ultrasonic mist transducer suffering damage if the water runs dry, mist transducer will stop working once no water.
