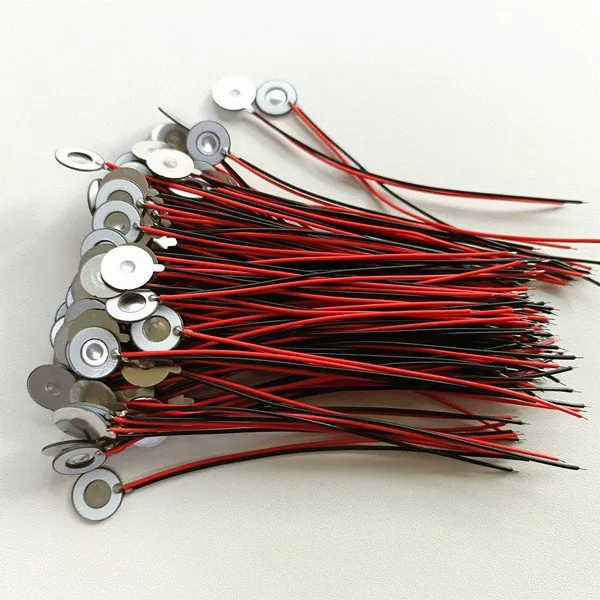

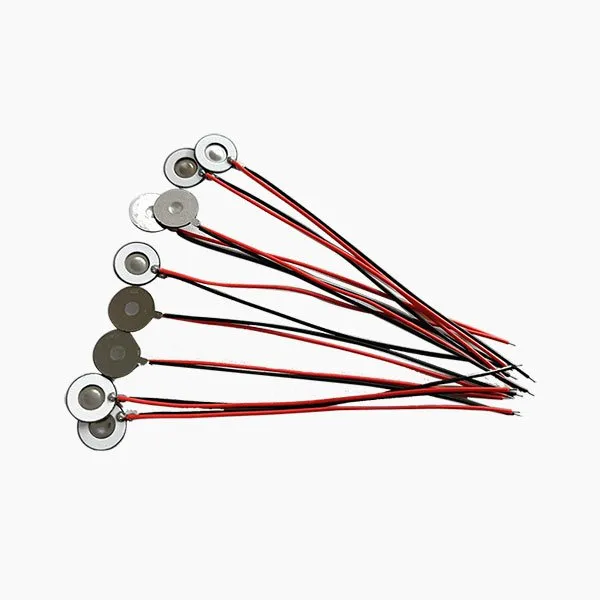

Microporous atomizer sheet 10mm diameter, 185-190KHz.
| Part number. | PZT-W10-185K | DATE: 2018-3-28 |
| Items. | Value | Condition. |
| Dimension | Ø10*T0.05 hole=6-7um | Samples with the same figure. |
| Resonant frequency(Fr): | (190KHz±5KHZ) | Hp-4194A at 25℃ 80%R.H |
| Resonant impedance. (Ro) : | ≤180 ohm | Hp-4194A at 25℃ 80%R.H |
| Capacitance(Cp): | 1000PF±20% | LCR meter at 1KHz,10Vrms |
Microporous atomizer sheet working principle
The ultra-fine focused laser beam scans the metal material in real-time, leaving a specific number of micro-holes on the metal sheet as determined by the computer software, and a bespoke piezoelectric ceramic sheet can be bonded to the back of the metal sheet.
A high-frequency resonance is created when an electrical signal is excited.
The energy of this oscillation induces ultrasonic oscillations in the microporous steel membrane linked to the piezoelectric ceramic sheet, as well as ultrasonic oscillations in the liquid junction adsorbed on the microporous membrane, breaking the liquid’s structure.
Disperse and create an attractive and natural fog.
There are no chemical reagents to heat or add.
The energy savings are 90% as compared to the heating atomization process.
