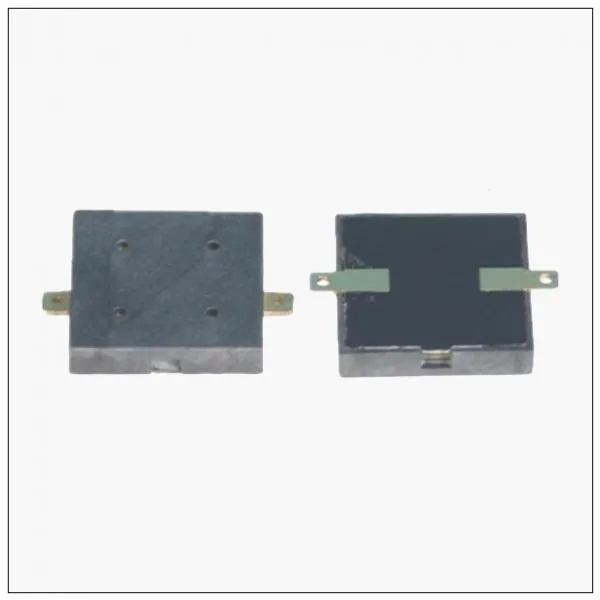

4khz 85dB Small SMD Buzzer
| Type | Unit | SM13PT03AV5SH |
| Operating Voltage | VP-p | Max 25Vp-p |
| Rated Current(max) | mA | 3mA (Max) |
| Sound output at 10cm | dB | Min 80 dB(Typ.)at 4.1kHz/10cm |
| Rate Frequency | Hz | 4100 |
| Capacitance | pF | 16000±30% |
| Operating temperature | ℃ | -30~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Weight | g | 0.5 |
| Housing material | LCP | |
4khz 85dB Small SMD BuzzerTo See the SMD buzzer list click here
SMD buzzer line utilizes two main technologies. Each technology has specific advantages and tradeoffs that must be taken into consideration depending on the application requirements.
