SMT Magnetic Passive Buzzer

3.6V 90dB SMD Transducer SMT Magnetic Passive Buzzer For Sale, Please contact us for a datasheet and a price list of it.

Categories: ,

SMT Magnetic Passive Buzzer Parameter:

ItemUnitSpecificationCondition
Oscillation FrequencyHz2830Vo-p=1/2duty, square wave
Operating VoltageVp-p2-5
Rated VoltageVp-p3.6
Current ConsumptionmAMAX. 90at Rated Voltage
Sound Pressure LeveldBMIN. 85at 10cm at Rated Voltage
Coil ResistanceΩ18±3
Operating Temperature-30 ~ +70
Storage Temperature-40 ~ +85
Dimensionmm10 x 10 x H3.2See appearance drawing
Weight (MAX)gram0.6
Housing MaterialLCP( Black )
Leading PinTin-Plated Brass(Sn)See appearance drawing
Environmental

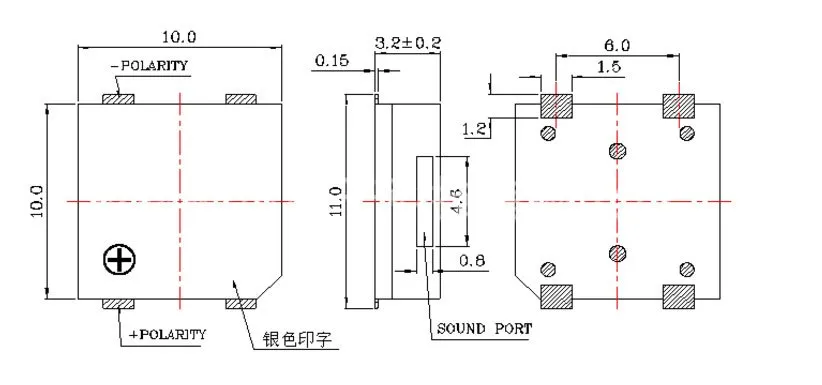

Dimension:

3.6V 90dB SMD Transducer SMT Magnetic Passive Buzzer
3.6V 90dB SMD Transducer SMT Magnetic Passive Buzzer

SMD buzzer list click here

What is a buzzer?
