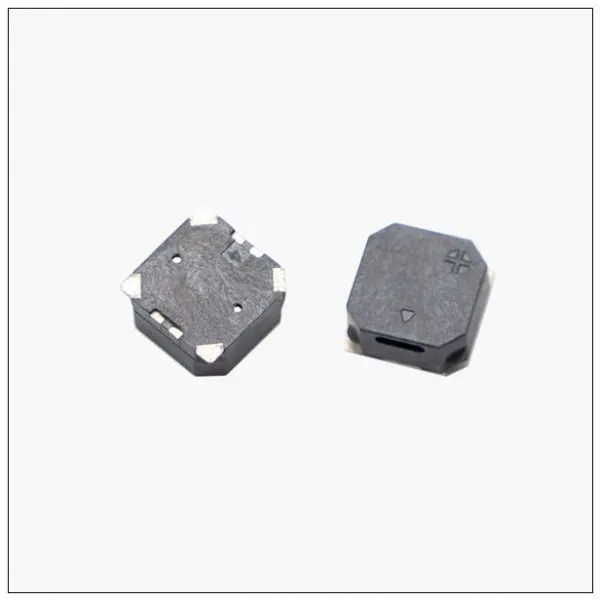

SMD Square Magnetic Buzzer

3.6V 85dB 2730Hz SMD Square Magnetic Buzzer, has the advantages of small size, crisp sound, high reliability, and easy installation of SMT patches.

SMD Square Magnetic Buzzer

Product Manual

Type
SM08ET04AV3.6R16TS
Min. Sound Pressure level at 4KHz/3V/10cm85
Rated Voltage (Vp-p )3.6V
Operating Voltage (Vp-p)2.5~4.5V
Rate Frequency2730Hz
Max.Rated Current100mA
Coil Resistance16±3Ω
Operating Temperature-20~+70
Storage Temperature-30~+80
Housing materialLCP
Weight0.8g

Dimension:

SMD Square Magnetic Buzzers
SMD Square Magnetic Buzzers

The current development trend of electronic products is light, thin, short, and small, and the SMT buzzer has the advantages of small size, crisp sound, high reliability, and easy installation of SMT patches, which are more and more customers choose us.

The buzzer sheet works by using the principle of the piezoelectric effect. When an alternating voltage is applied to it, it will produce mechanical vibration;

The voltage signal generated by the piezoelectric ceramic buzzer is very weak when it is subjected to mechanical force. Generally, it should be connected to a voltage amplifier when used as a vibration sensor.

If the test is re-tested after changing the position of the meter pen, the order of the pointer swing is leftward swing-zero return-right swing-zero return.
