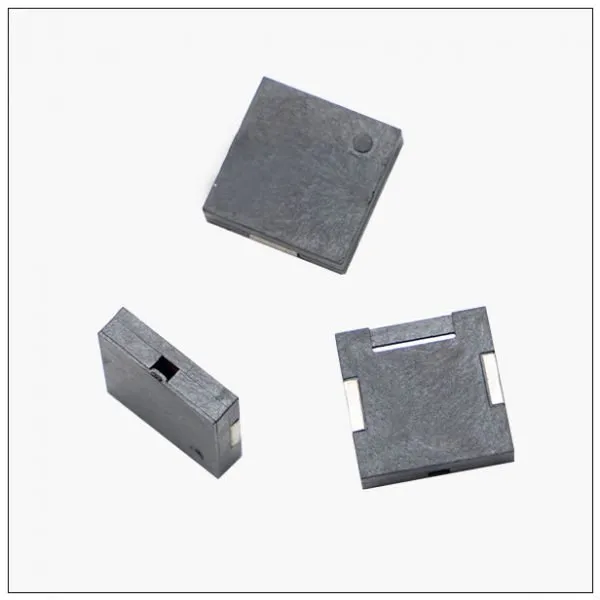

SMD Small Piezo Buzzer

SMD Small Piezo Buzzer Parameter:

Rated Voltage（Square Wave） Vp-p 5
Operating Voltage Vp-p 1-25
Rated Current（Max） mA 5
Min Sound Output at 4.1kHz/10cm dB 83
Resonant Frequency Hz 4100
Capacitance at 120Hz pF 16000±30%
Operating Temperature ℃ -40~+85
Storage Temperature ℃ -40~+85
Weight g 0.4
Housing Material LCP
Tone Nature Single
Connection SMD
Lead Wire UL1430 AWG24

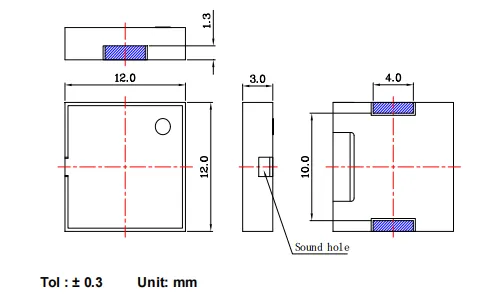

Dimension:

Piezo SMD buzzers list click here

What is a buzzer?

SMD Buzzer 5V 83db 12 x 3mm is a kind of voice device that converts the audio models into sound signals. It is mainly used to prompt or alarm. According to different designs and applications, it can produce music sound, flute sound, buzzer, alarm sound, electric bell, and other different sounds.

Hot Tags: SMD small piezo Buzzer manufacturer, price, for sale, customized
