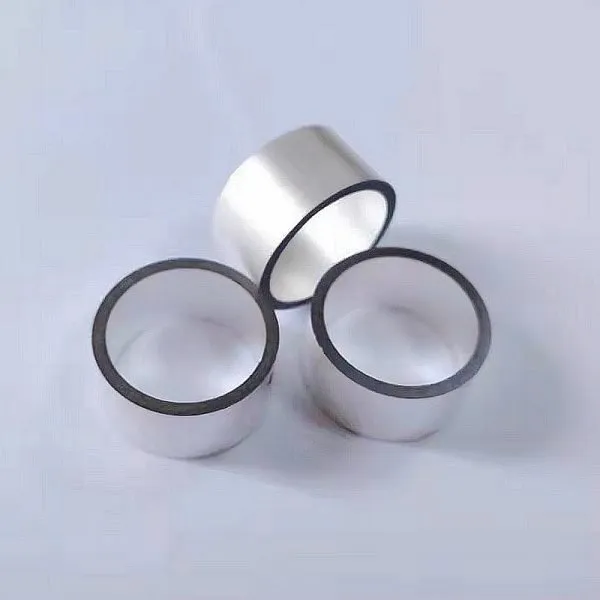

Piezoelectric Cylinder Tubes 26x22x13mm 44KHz

Material: PZT4

No MOQ

Piezoelectric cylinder tube also called piezo ceramic cylinder and piezoelectric tube, piezo cylinder application as following:

fiber optics
scanning electron microscopes
Ultrasonic Bathymetry
Ultrasonic Sensor/Vibration Sensor/Pressure sensor

The piezoelectric ceramic tube scanner is a piezoelectric ceramic tube, that can move XYZ three-dimensionally.
For 3D micro-scanning and positioning, Such as AFM atomic force microscope and so on.
it is a thin circular tube of radially polarized piezoelectric material, Has four outer electrodes and a continuous inner electrode.
When a voltage is applied to one of the external electrodes, the wall of the actuator tube in the corresponding region expands, which causes a vertical contraction and a large lateral deflection of the tube tip.

Circumferential electrodes can be used for vertical or radial expansion and contraction.

Piezo Tube Material: PZT4 / PZT5 / PZT8

Custom Designed and Engineered Piezoelectric Cylinder
To meet your unique specifications, Norvis can make piezo tubes in a wide range of dimensions and thicknesses and out of materials other than our standard cylinder materials. To discuss your requirements, contact our representative with your drawing or sketch including tolerance values, material, and electrode pattern.
