Magnetic SMD Active Buzzer

Magnetic SMD Active Buzzer Parameter:

1 Rated Voltage VDC 5
2 Operating Volt VDC 4 – 7
3 Mean Current mA Max.30 Applying rated voltage direct current
4 Sound Output dBA 85/10cm Distance at 10cm(A-weight free air), Applying rated voltage direct current
5 Rated Frequency Hz 2400
6 Operating Temp ℃ -20-+70
7 Storage Temp ℃ -30-+80
8 Dimension mm L12.8×W12.8×H10.0 See attached drawing.
9 Weight gram 2.8
10 Material PPS(Gray)
11 Terminal Pin type See attached drawing
12 Storage life month 3 3 months preservation at room temp(25±3℃), Humidity40%
13 Environmental RoHS Internal PCB solder joints contain exempt high-temperature lead Tin Protection Regulation

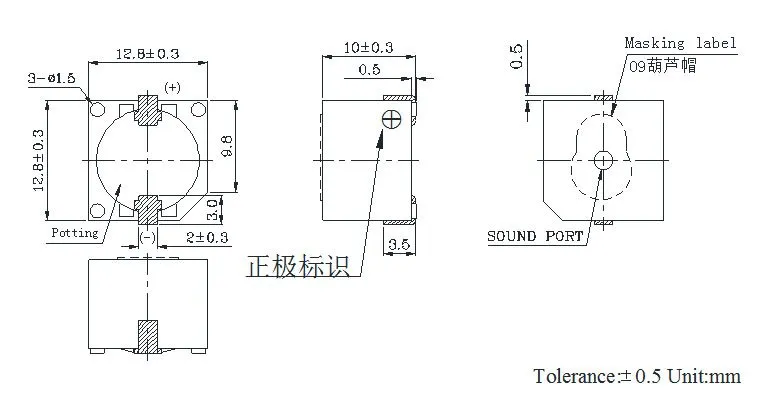

14 Drawing:
